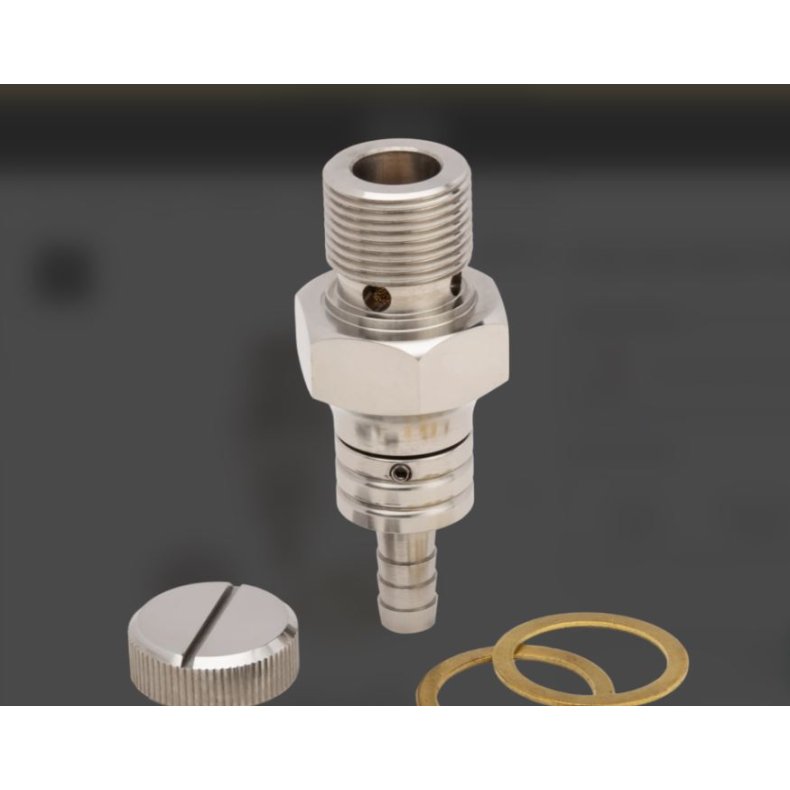

Prism Fuel Valves 1940-1965

1.679,00 DKK

  • Fuel valve by Prism Supply Co.
  • fits Big Twins and 45”/750 cc Sidevalves 1940-1965
  • stainless steel, polished, no reserve
  • length: 62 mm
  • outlet position: straight
  • required fuel line: 1/4”
  • thread: 3/4”-18
  • USA
  • gross weight: 121 g
  •
Vælg Variant
stk.

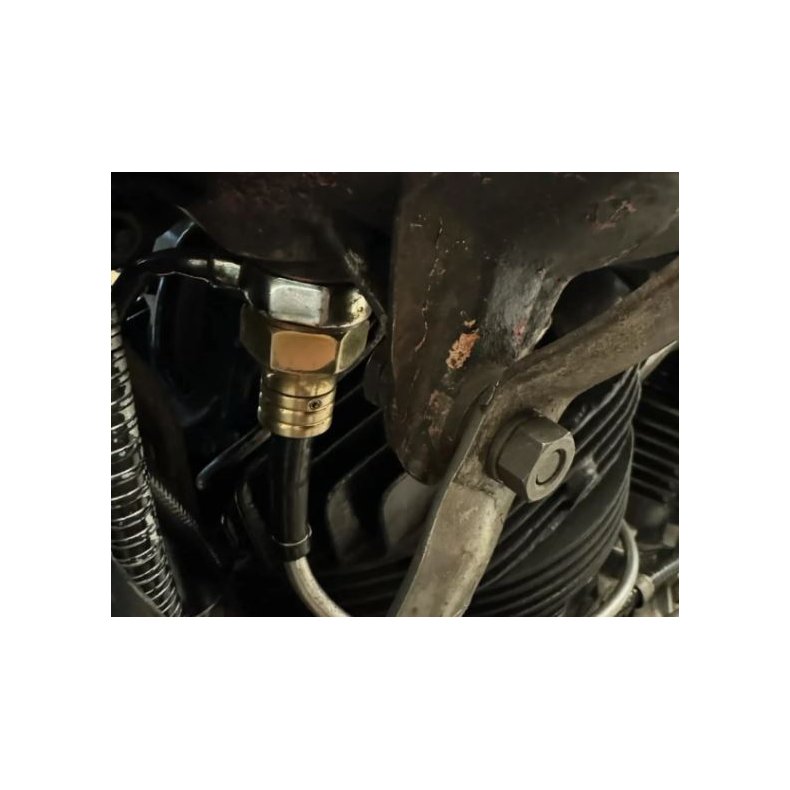

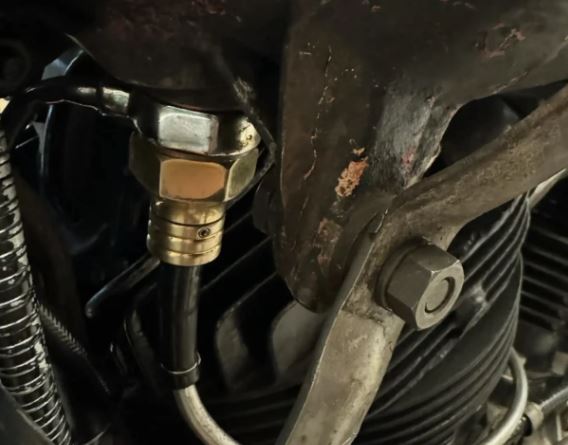

This special fuel valve by Prism Supply fits directly into the 3/4"-18 tank bung originally used on Harley-Davidson Knucklehead and Panhead fuel tanks – ideal for vintage bikes, old-school restorations, and custom projects. It features a 5/16" diameter hose barb and an integrated fuel filter, ensuring clean and reliable fuel delivery. For a snug, leak-proof fit, we recommend using fuel lines with a 1/4" inner diameter.

Fuel flow is controlled by rotating the lower cylindrical operating piece with the two grooves, allowing precise on/off operation without twisting the attached fuel line. The original crossover line can still be used, while the internal through-tank linkage is completely eliminated.

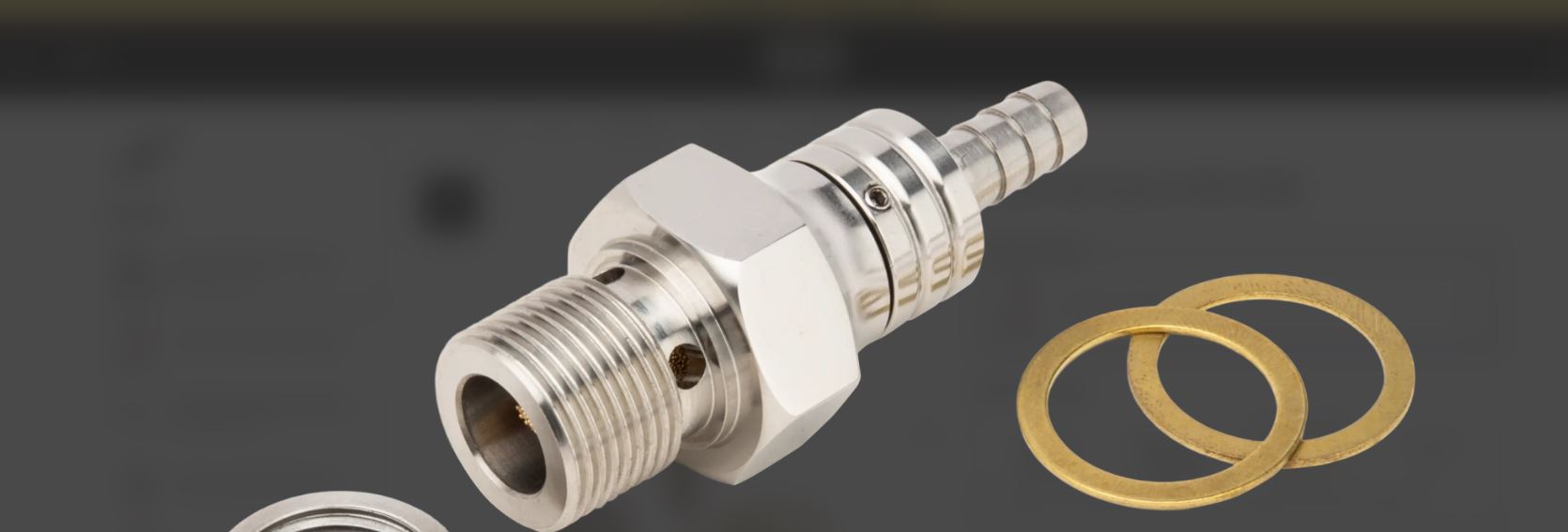

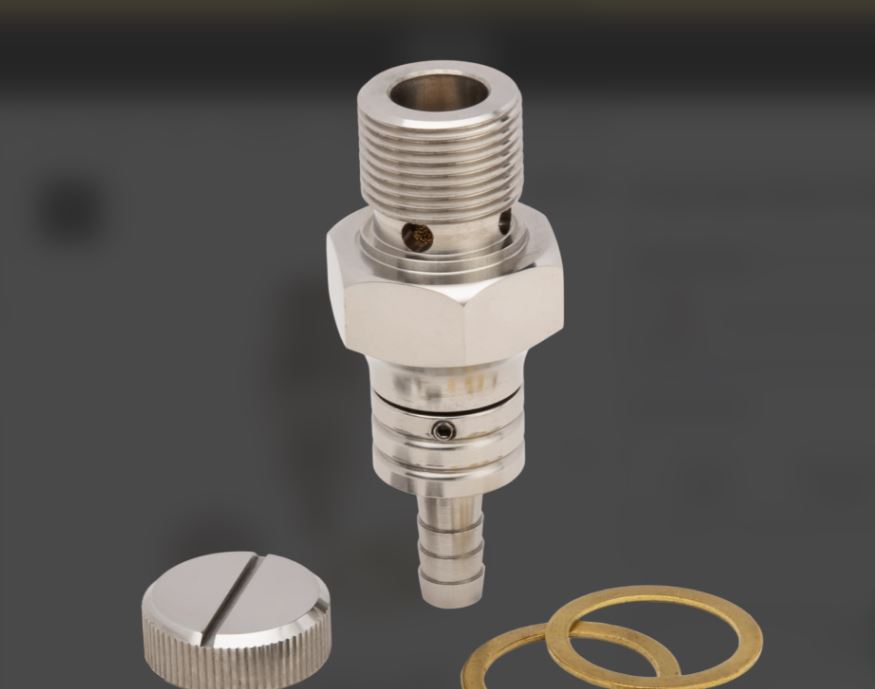

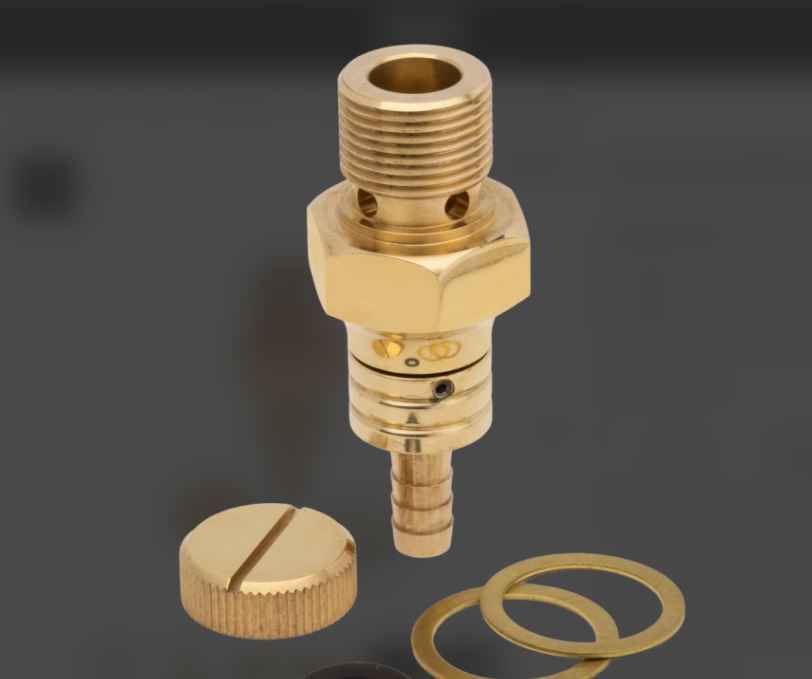

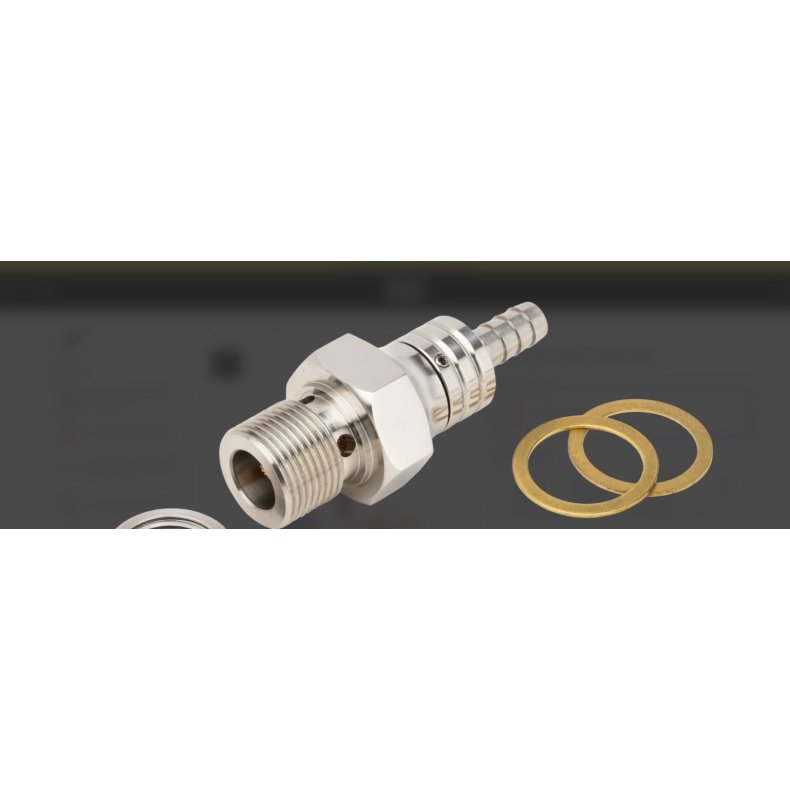

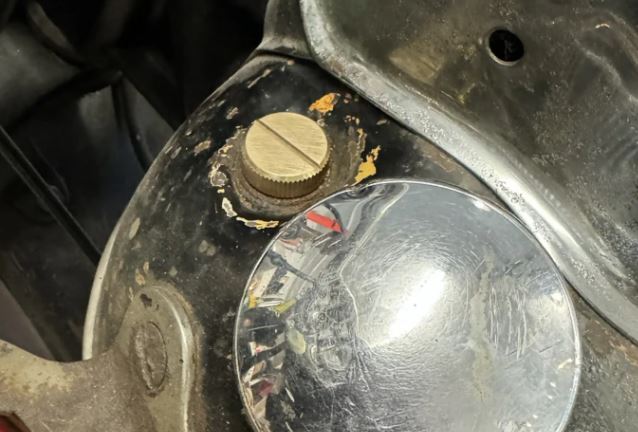

The kit includes two brass sealing washers and a cap for the top of the tank. Available in brass or stainless steel.
