Risers 22mm , 1", 1 1/8"

Pris fra 899,00 DKK

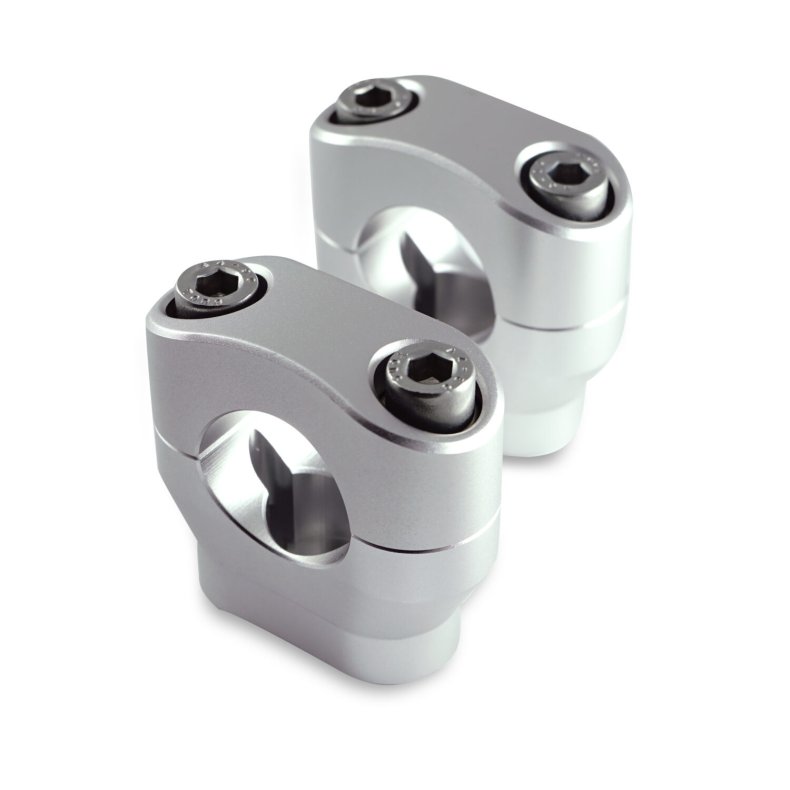

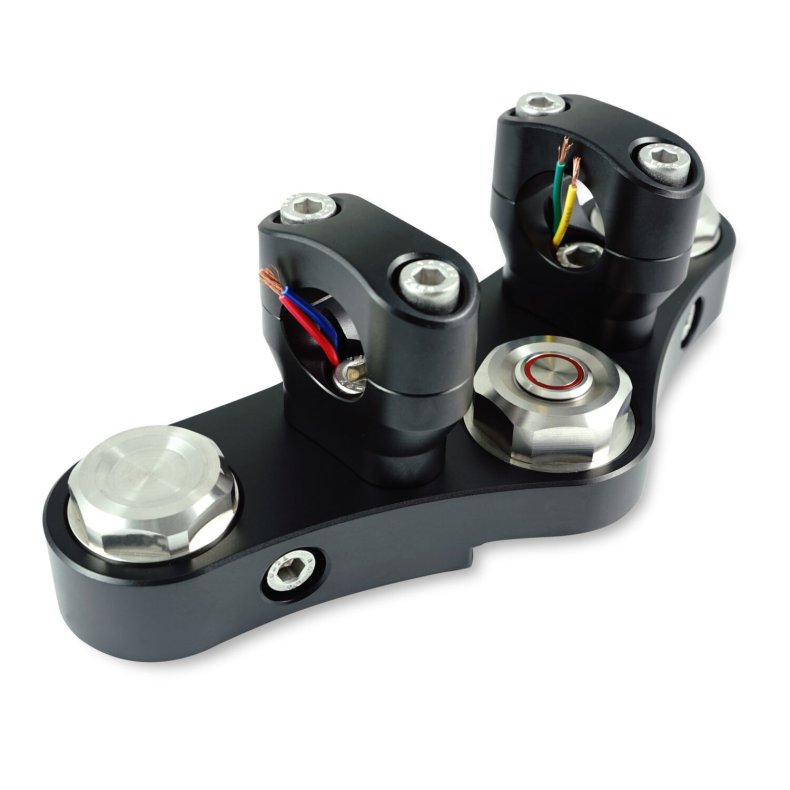

Rebelmoto Risers bars and hidden wiring channels. All wires from for example, your handlebar controls and bar end turn signals, can be hidden within the handlebars and routed through the risers. For that clean look with minimum cable clutter.

The height is 32mm with no offset. Measured from top of triple tree clamp to center of the handlebar. See drawing for further measurements. The risers have a total of four 6mm channels that make it possible to route the wiring through a hole in the handlebar and through the risers, out the bottom of the triple tree.

The risers have been CNC machined out of aircraft grade aluminium. After machining the risers undergoes a series of surface treatment steps, including anodizing. The result is a smooth satin finish, that is both scratch and weather resistant. Available in both black and silver anodized.

The risers are mounted to the triple tree using M10 stainless steel bolts, which of course are included. They can be used with our own Rebelmoto Triple Tree Clamps, and any other triple tree with 10mm mounting holes. The risers can also be used with the BMW 4mm OEM steel yoke. This requires a minor modification of the steel yoke to enlarge two of the mounting holes from 8mm to 10mm.

All stainless steel hardware is included in the box.

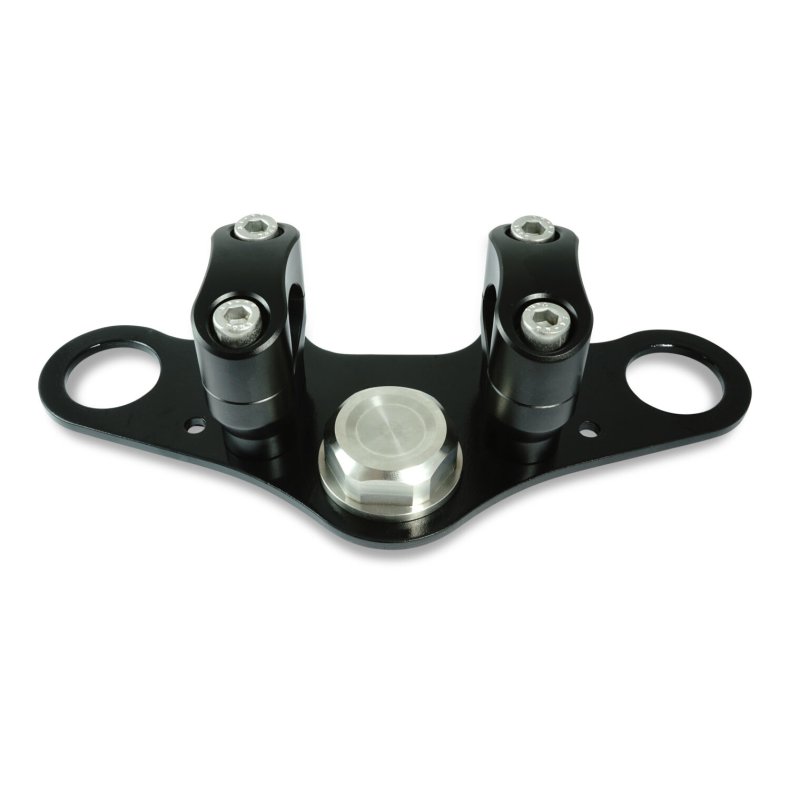

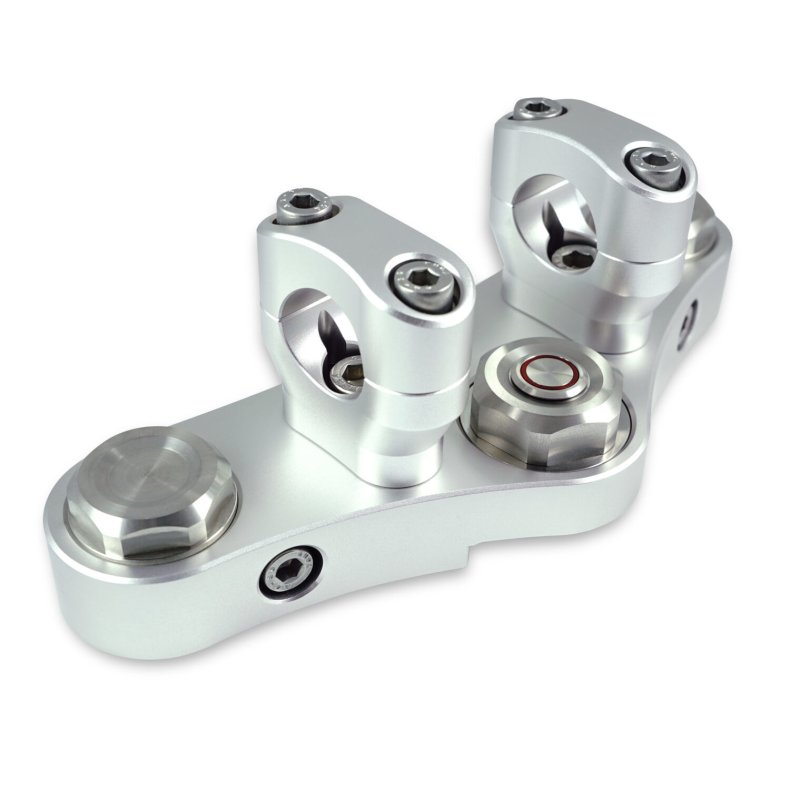

Can be used with all our Rebelmoto Scram Triple Tree Clamps:

Triple Tree Clamp Scram

22mm Height 32mm

1" Height 32mm

28,6mm Height 32mm
